BMC series jaw crusher adopts high-strength material and first-class manufacturing process. It has the advantages of excellent structure, reliable performance, higher crushing ratio, larger capacity and lower cost.
BMC European jaw crusher is a new generation of jaw crusher developed by making better changes and upgrades to the traditional jaw crusher's motion parameters, equipment structure, adjustment methods, etc. It is suitable for It is widely used in mining and other industries for primary and secondary crushing of various soft, medium and hard ores with compressive strength not higher than 320MPa. It is a high-yield crusher that meets environmental impact assessment standards and has many advantages such as high output, low energy consumption, reliable structure, and convenient operation and maintenance. It is the preferred equipment for coarse crushing of various rocks.
Model | Size of Feed Opening (mm) | Max Feed edge (mm) | Discharge Range Opening (mm) | Capacity (t/h) | Motor power (kw) |
BMC80 | 510*800 | 434 | 40-175 | 65-380 | 75 |
BMC96 | 580*930 | 493 | 60-175 | 120-455 | 90 |
BMC106 | 700*1060 | 595 | 70-200 | 155-580 | 110 |
BMC116 | 800*1150 | 680 | 70-200 | 170-600 | 132 |
BMC110 | 850*1100 | 723 | 70-200 | 190-625 | 160 |
BMC120 | 870*1200 | 740 | 70-200 | 205-640 | 160 |
BMC125 | 950*1250 | 807 | 100-250 | 290-845 | 160 |
BMC140 | 1070*1400 | 910 | 125-250 | 385-945 | 200 |
BMC145 | 1100*1400 | 935 | 125-275 | 400-1070 | 200 |
BMC150 | 1200*1500 | 1020 | 150-300 | 478-1160 | 250 |
BMC160 | 1200*1600 | 1020 | 150-300 | 520-1275 | 250 |
BMC200 | 1500*2000 | 1275 | 200-300 | 760-1590 | 400 |

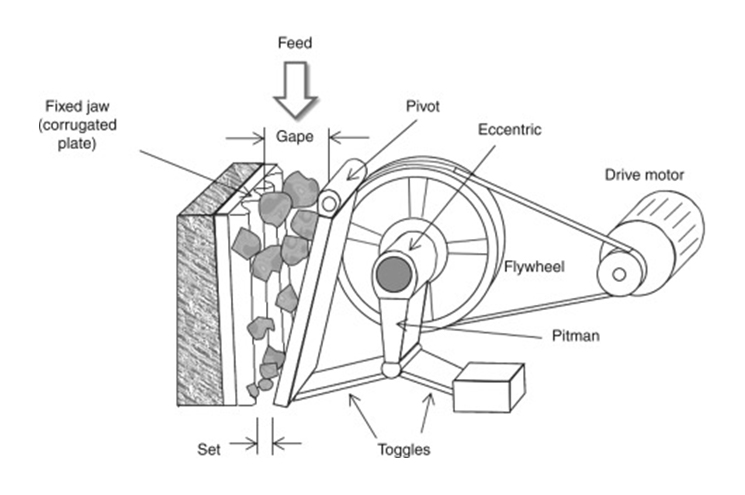

The crushing method of the jaw crusher is a curved extrusion type, and its working principle is to simulate the jaw movement of animals. When working, the motor drives the belt and pulley through the eccentric shaft to move the movable jaw up and down. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, so that the movable jaw is pushed close to the fixed jaw, and the materials are crushed many times through the extrusion, friction and grinding between the two jaws. When the movable jaw descends, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw leaves the fixed jaw under the action of the pull rod and the spring, and the crushed material is discharged freely through the discharge port at the lower part of the jaw cavity under the action of gravity. With the continuous rotation of the motor, the movable jaw periodically crushes and discharges materials to achieve mass production.
Optimized rotating components, lubrication and sealing structure. More reasonable force distribution with higher power conversion efficiency, allowing larger eccentricity and higher rotation speed.
Advanced crushing principle and technical parameters with full hydraulic control system. Cavity clearing, adjustment, and locking all performed by hydraulic operation.
Integrated hydraulic lubrication system with centralized automation and intelligent control. Real-time monitoring of equipment operation status.
Higher proportion of cubic particles in finished products with reduced flake-shaped particles, significantly improving product quality.
