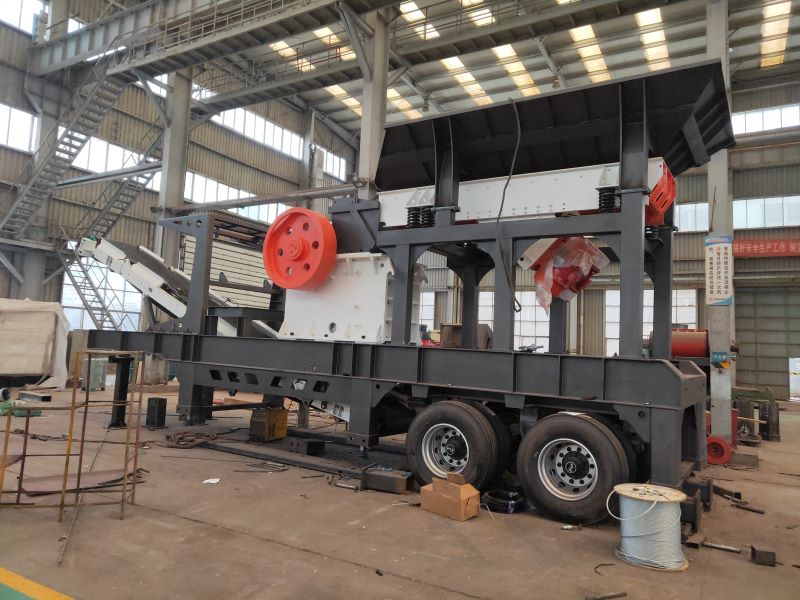

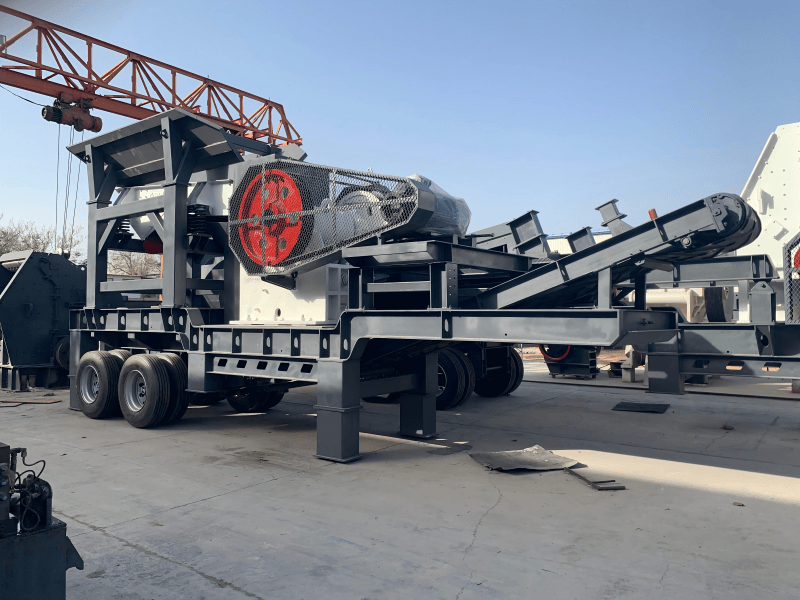

Tire Type Mobile Jaw Crushing Plant

BP Mobile Crusher Plant is a series of new rock crushing equipment developed by our company which can work in narrow and terrible conditions. It is convenient and flexible greatly increasing the coarse crushing in the fields of business ideas. It is mainly used for processing material in metallurgy, chemistry, building materials, hydro power and other industries that often requires mobile base stations. It is especially suitable for the mobile crushing of stones in such areas as highways railways and hydro-power project.

Capacity

70-380t/h

Feeding Size

≤630mm

Introduction

Mobile Crushing Plant is a fully integrated solution for on-site crushing of hard and abrasive stones. Designed to process materials with high compressive strength, such as granite, basalt, and quartz, it combines robust crushing equipment—such as jaw crushers, cone crushers, or impact crushers—with a mobile platform to deliver high productivity in tough conditions.

Plant structure includes feeding, primary and secondary crushing, screening, and conveying systems, all mounted on a wheeled or tracked chassis. This configuration allows rapid deployment and relocation between different project sites, saving time and infrastructure investment.

Mobile Crushing Plant is widely used in open-pit mining, road and bridge construction, railway ballast production, and aggregate manufacturing. With its reliable performance, low energy consumption, and intelligent control system, it provides a powerful and flexible solution for modern hard rock processing needs.

Technical Parameters

Model	Vibrating Feeder	Crusher model	Max Feed Size (mm)	Number of Axles	Main Conveyor	Capacity (t/h)	Transportation Dimension(mm)
BPE57	ZSW3090	PE500×750	≤425	2	B650	45-100	12500×2600×3950
BPE69	ZSW3896	PE600×900	≤500	2	B800	60-160	12150×2600×3950
BPE750	ZSW4211	PE750×1060	≤630	3	B1000	110-320	13270×2850×4200
BPE96	ZSW3896	6CX96	≤500	2	B800	100-200	12150×2600×3950
BPE110	ZSW4211	6CX110	≤650	3	B1200	250-500	13200×3000×4400
BP1310	ZSW3896	PCZ1310	≤600	2	B800	100-160	11500x2300x4000
BP1410	ZSW4211	PCZ1410	≤700	3	B1000	160-210	1270026004300
BP1512	ZSW4913	PCZ1512	≤750	3	B1200	250-320	1380028004500
BP1210	ZSW3896	6FX1210	≤600	2	B800	100-285	13270*2800x4200
BP1214	ZSW3896	6FX1214	≤600	2	B800	150-400	14500x2900x4500
BP1315	ZSW4211	6FX1315	≤700	3	B1000	180-500	15200x3000x4500

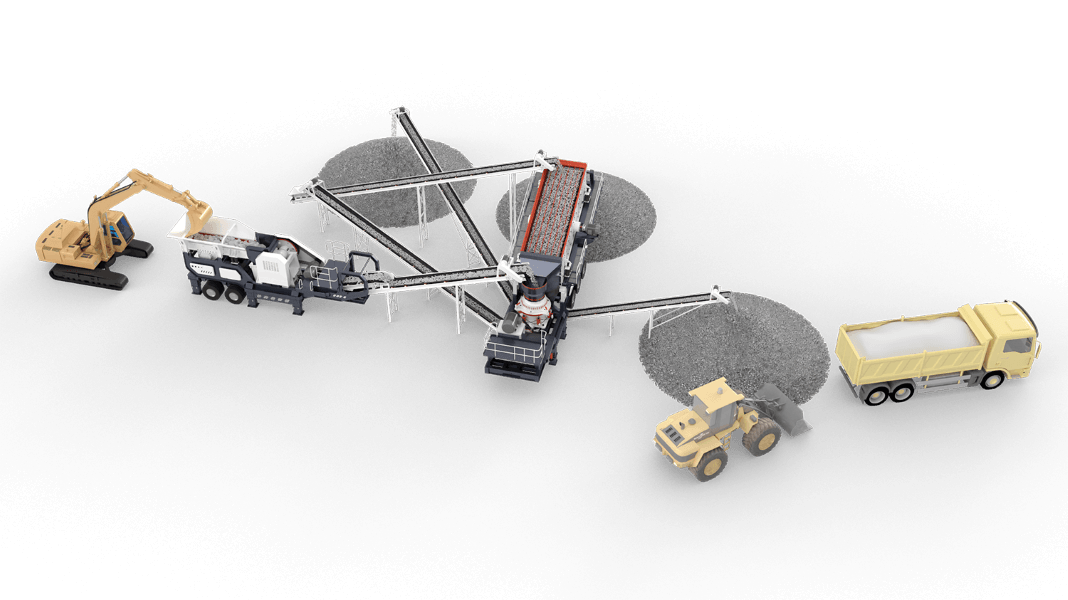

Working Principle

Raw materials such as limestone or coal are loaded into feeding hopper by excavator or loader. Material then enters primary crusher (usually jaw crusher or impact crusher) where it is broken down into smaller pieces.

Crushed material is transferred via integrated belt conveyor to vibrating screen for classification. Oversized material is returned to crusher for further reduction, while qualified product is discharged for storage or further processing.

Mobile chassis enables entire system to move easily between work sites. Diesel engine or electric motor powers equipment, and centralized control system ensures safe and efficient operation. Optional dust suppression systems and noise reduction designs help minimize environmental impact during operation.

Features

Structural Upgrade

Optimized rotating components, lubrication and sealing structure. More reasonable force distribution with higher power conversion efficiency, allowing larger eccentricity and higher rotation speed.

Full Hydraulic Control

Advanced crushing principle and technical parameters with full hydraulic control system. Cavity clearing, adjustment, and locking all performed by hydraulic operation.

Intelligent Automation

Integrated hydraulic lubrication system with centralized automation and intelligent control. Real-time monitoring of equipment operation status.

Good Particle Shape

Higher proportion of cubic particles in finished products with reduced flake-shaped particles, significantly improving product quality.
