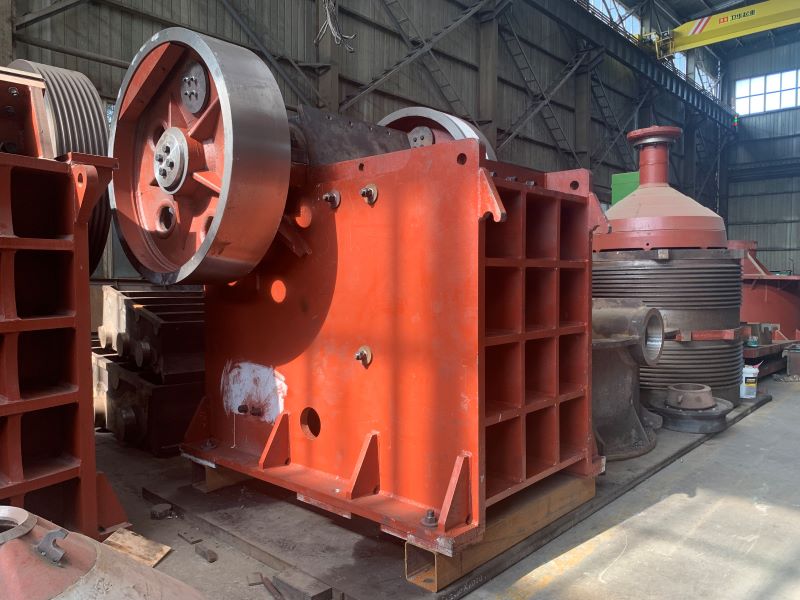

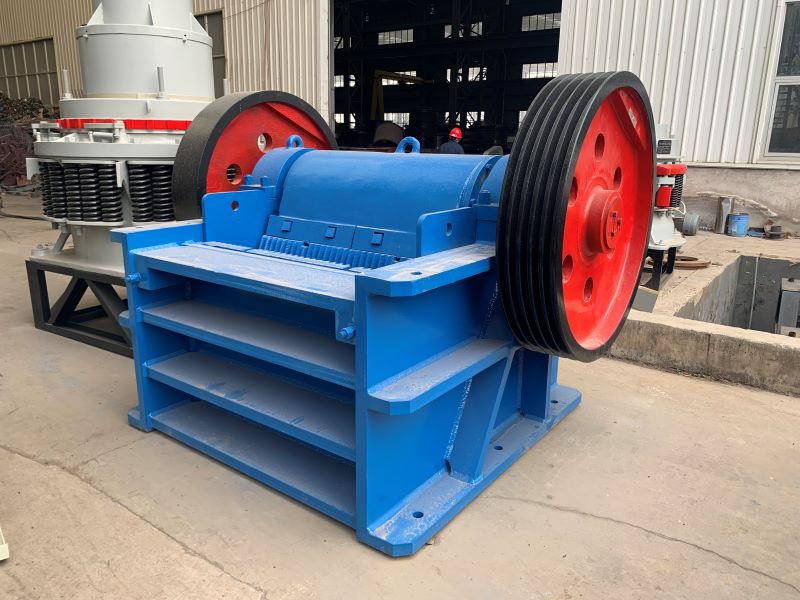

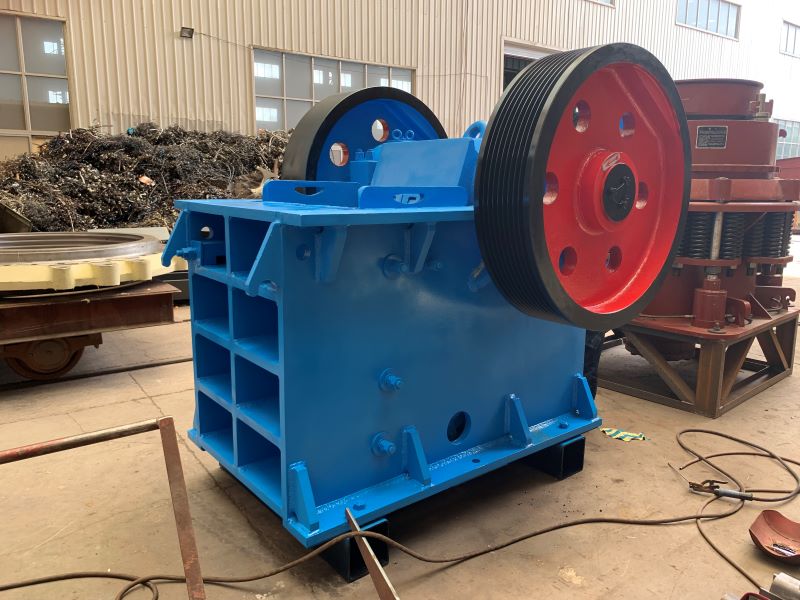

PE/PEX series single toggle jaw crusher has the features of great crushing ratio and uniform product size. It can be used to crush materials with compressive resistance lower than 320 Mpa. PE series is used in primary crushing. PEX series is used in secondary crushing and fine crushing.
Jaw crusher features advanced crushing chamber design and is built with high-strength materials, providing excellent crushing ratio and wear resistance. Suitable for processing various ores and large materials with compressive strength up to 320 MPa. Compact structure and easy maintenance make it ideal for quarrying, mining, construction waste recycling, and metallurgy industries. Moving jaw is engineered with optimized motion parameters to improve crushing efficiency and reduce energy consumption. Multiple models are available to meet different capacity and output size requirements.
Model | Size of Feed Opening (mm) | Max Feed edge (mm) | Discharge Range Opening (mm) | Capacity (t/h) | Motor power (kw) |
PE-400×600 | 400×600 | 340 | 40-100 | 16-64 | 30 |
PE-500×750 | 500×750 | 425 | 50-100 | 40-96 | 55 |
PE-600×900 | 600×900 | 500 | 65-180 | 48-136 | 55-75 |
PE-750×1060 | 750×1060 | 630 | 80-180 | 115-240 | 90-110 |
PE-870×1060 | 870×1060 | 750 | 170-270 | 232-376 | 90-110 |
PE-900×1200 | 900×1200 | 780 | 100-200 | 160-384 | 110-132 |
PE-1000×1200 | 1000×1200 | 850 | 200-280 | 304-440 | 110-132 |
PE-1200×1500 | 1200×1500 | 1020 | 150-300 | 400-800 | 200 |
PEX-150×750 | 150×750 | 120 | 10-40 | 8-26 | 15 |
PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-48 | 30-37 |
PEX-250×1200 | 250×1200 | 210 | 25-60 | 21-56 | 37 |
PEX-300×1300 | 300×1300 | 250 | 20-90 | 21-85 | 75 |

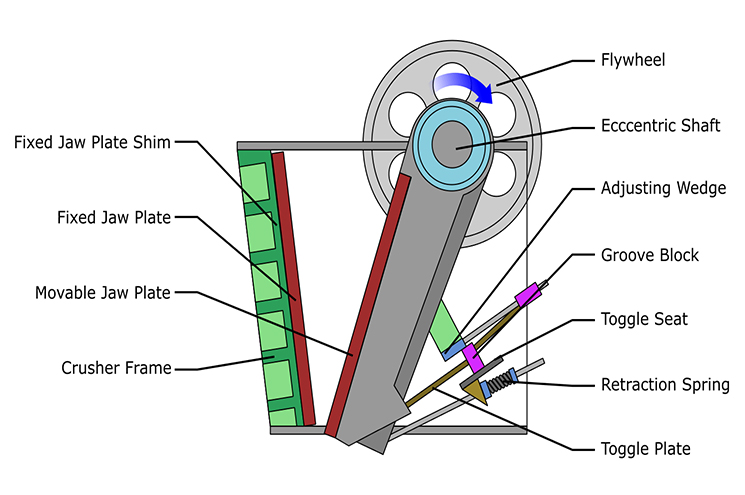

The crushing method of the jaw crusher is a curved extrusion type, and its working principle is to simulate the jaw movement of animals. When working, the motor drives the belt and pulley through the eccentric shaft to move the movable jaw up and down. When the movable jaw rises, the angle between the toggle plate and the movable jaw becomes larger, so that the movable jaw is pushed close to the fixed jaw, and the materials are crushed many times through the extrusion, friction and grinding between the two jaws. When the movable jaw descends, the angle between the toggle plate and the movable jaw becomes smaller, and the movable jaw leaves the fixed jaw under the action of the pull rod and the spring, and the crushed material is discharged freely through the discharge port at the lower part of the jaw cavity under the action of gravity. With the continuous rotation of the motor, the movable jaw periodically crushes and discharges materials to achieve mass production.
Optimized rotating components, lubrication and sealing structure. More reasonable force distribution with higher power conversion efficiency, allowing larger eccentricity and higher rotation speed.
Advanced crushing principle and technical parameters with full hydraulic control system. Cavity clearing, adjustment, and locking all performed by hydraulic operation.
Integrated hydraulic lubrication system with centralized automation and intelligent control. Real-time monitoring of equipment operation status.
Higher proportion of cubic particles in finished products with reduced flake-shaped particles, significantly improving product quality.
