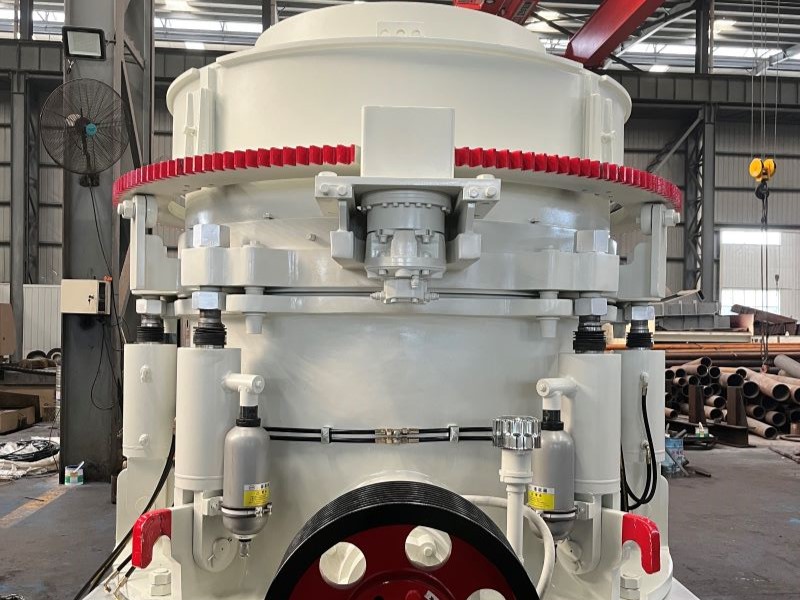

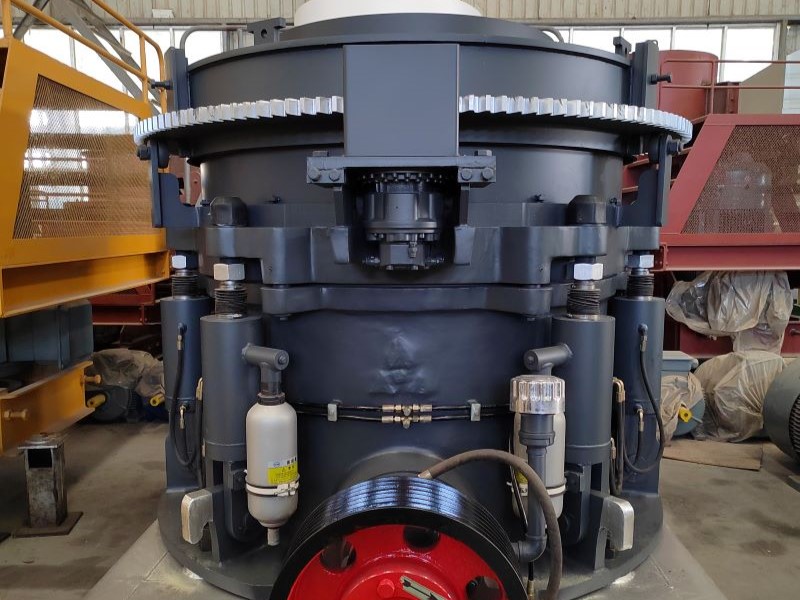

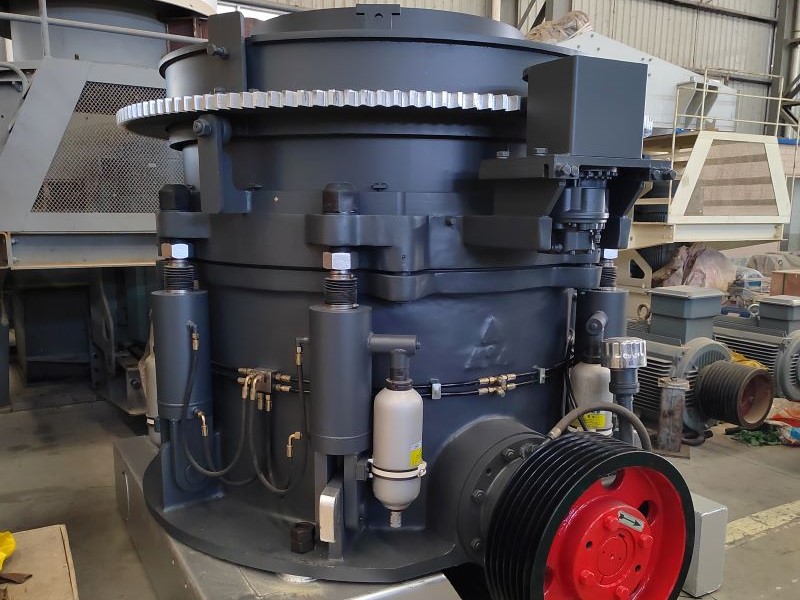

BHP series hydraulic cone crusher is a new series product with high performance, which absorbs advanced technology in the world. It is suitable for crushing high and medium hardness ores and rocks.
Multi-Cylinder Hydraulic Cone Crusher features an advanced multi-cylinder hydraulic system that enables precise control and automatic adjustment of the crushing chamber, ensuring stability and high efficiency during operation. Designed with a robust crushing cone and wear-resistant materials, it effectively handles hard ores such as granite, basalt, and iron ore. The crusher offers advantages such as a large crushing ratio, high output, low energy consumption, and simple operation. Its hydraulic system provides overload protection and rapid discharge, significantly improving work efficiency and equipment safety. With a compact structure and small footprint, it is easy to install and maintain. This crusher is widely applied in mining, construction waste recycling, metallurgy, and cement production. Its excellent performance and stable operation have made it a preferred choice for many mining enterprises and engineering projects, representing an essential piece of equipment for modern, efficient ore crushing.
Model | Cavity | Standard Type | Short Type | Power | Capacity | Weight | ||
Feeding Size | Min Discharging | Feeding Size | Min Discharging | |||||
BHP200 | Super coarse | - | - | - | - | 132-200 | 90-250 | 14 |
BHP200 | Coarse | 185 | 19 | 76 | 10 | 132-200 | 90-250 | 14 |
BHP200 | Medium | 125 | 17 | 54 | 6 | 132-200 | 90-250 | 14 |
BHP200 | Fine | 95 | 13 | 23 | 6 | 132-200 | 90-250 | 14 |
BHP200 | Super Fine | - | - | 10 | 5 | 132-200 | 90-250 | 14 |
BHP300 | Super coarse | 230 | 25 | - | - | 180-250 | 115-440 | 19.96 |

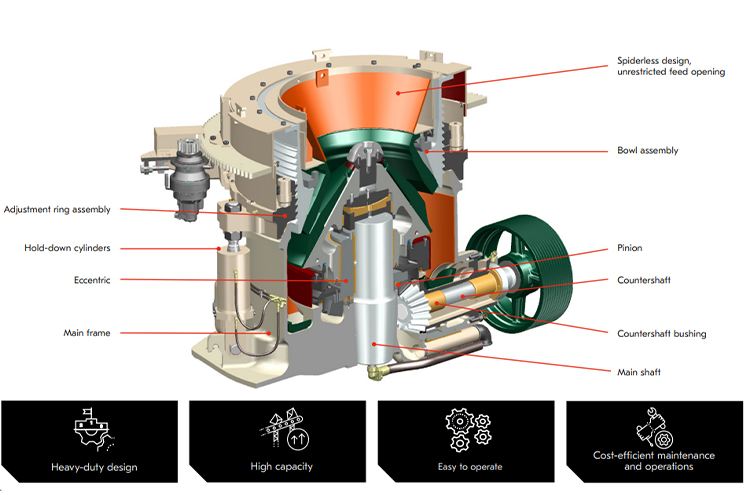

The motor drives the horizontal shaft to rotate, and the horizontal shaft is directly transmitted to the gear. The gear drives the eccentric bushing to rotate around the main shaft, and the eccentric bushing drives the moving cone to swing and rotate. The copper bushings inlaid between the main shaft and the eccentric bushing, and between the eccentric bushing and the moving cone act as bearings. Adjust the size of the discharge opening by rotating the fixed cone. The 6 hydraulic cylinders outside the main engine pull the fixed cone to protect the overload and clear the cavity. The whole set of crusher is composed of host machine, lubrication system and electric control system.
Optimized rotating components, lubrication and sealing structure. More reasonable force distribution with higher power conversion efficiency, allowing larger eccentricity and higher rotation speed.
Advanced crushing principle and technical parameters with full hydraulic control system. Cavity clearing, adjustment, and locking all performed by hydraulic operation.
Integrated hydraulic lubrication system with centralized automation and intelligent control. Real-time monitoring of equipment operation status.
Higher proportion of cubic particles in finished products with reduced flake-shaped particles, significantly improving product quality.
