ZSW series vibrating feeder is widely used in mines, quarries, gravel pits, and crushing and screening contracting operations. It is a feeding equipment used for processing rocks, gravel, slag or recycled materials, as well as industrial and other materials.

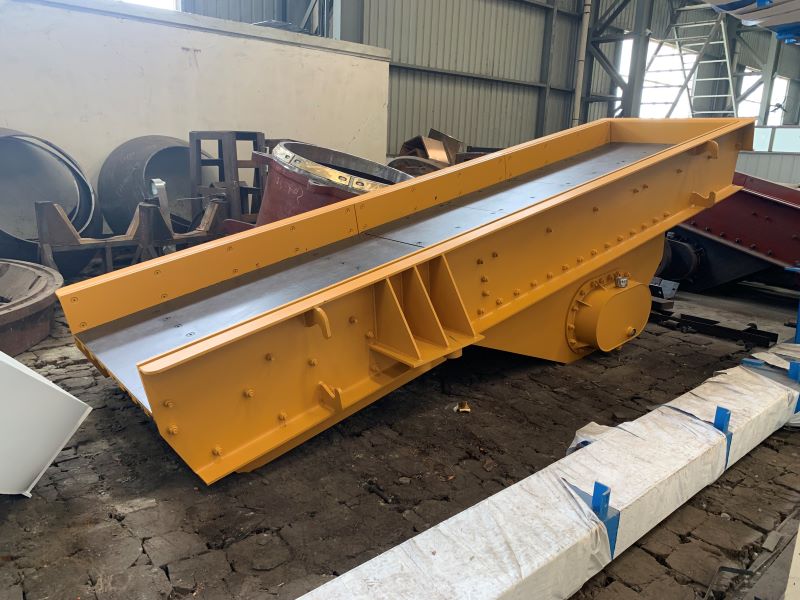

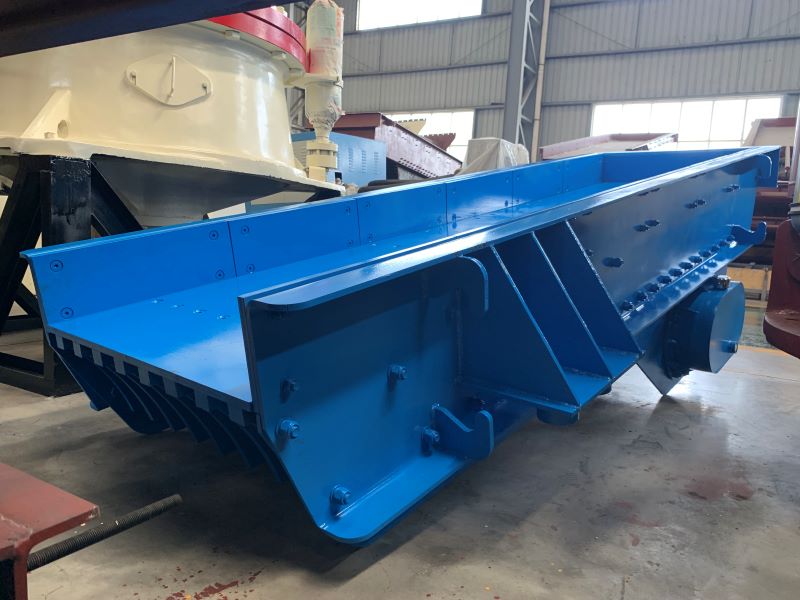

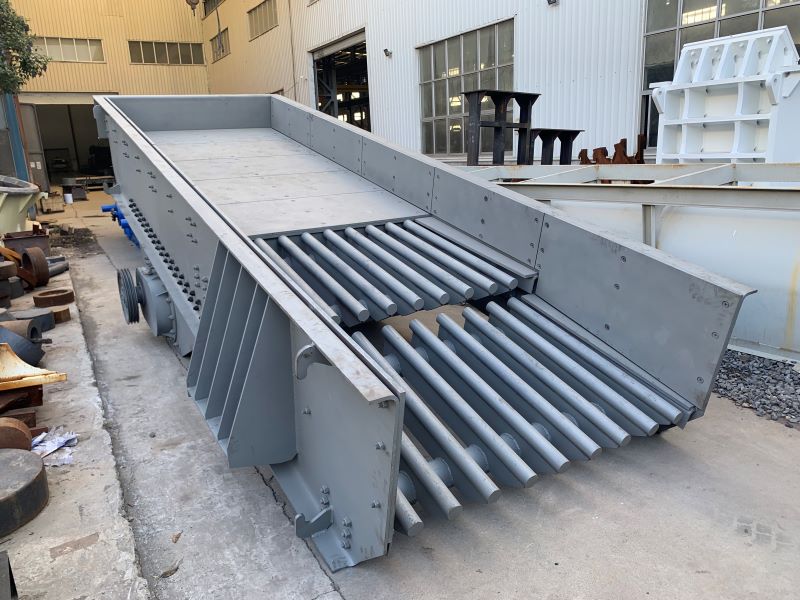

Vibrating Feeder is a vital piece of equipment in material handling systems, engineered to deliver consistent and controlled flow of bulk materials. It consists of a vibrating trough supported by springs and driven by a pair of counter-rotating vibrating motors or an exciter. The vibration causes the material to move forward in a controlled manner, preventing blockages and ensuring steady feeding.
This machine is suitable for feeding materials to jaw crushers, impact crushers, or screening equipment. It handles various types of bulk solids, including ore, rock, coal, aggregates, and chemical granules. The feeding rate is adjustable via motor speed control, allowing for precise process control.
Vibrating Feeder offers advantages such as strong adaptability to harsh environments, low energy consumption, minimal maintenance, and extended service life. It plays a crucial role in automated material handling and is widely used in mineral processing, quarrying, building materials, and recycling applications.
Model | Max Feed Size | Capacity | Motor Power | Overall Dimensions(LxWxH) | Size of Funnel |
ZSW-380×95 | 500 | 160-230 | 11 | 3880×2175×1957 | 3800×950 |
ZSW-490×110 | 580 | 200-300 | 15 | 4957×2371×2125 | 4900×1100 |
ZSW-590×110 | 600 | 200-300 | 22 | 5957×2467×2151 | 5900×1100 |
ZSW-490×130 | 750 | 400-560 | 22 | 4980×3277×1525 | 4900×1300 |
ZSW-600×130 | 750 | 400-560 | 22 | 6080×3277×1525 | 6000×1300 |
ZSW-600×150 | 1000 | 500-900 | 30 | 6080×3541×1545 | 6000×1500 |
ZSW-600×180 | 1200 | 700-1200 | 37 | 6080×3852×1770 | 6000×1800 |
ZSW-600×200 | 1400 | 900-1800 | 45 | 6080×4094×1810 | 6000×2000 |
Optimized rotating components, lubrication and sealing structure. More reasonable force distribution with higher power conversion efficiency, allowing larger eccentricity and higher rotation speed.
Advanced crushing principle and technical parameters with full hydraulic control system. Cavity clearing, adjustment, and locking all performed by hydraulic operation.
Integrated hydraulic lubrication system with centralized automation and intelligent control. Real-time monitoring of equipment operation status.
Higher proportion of cubic particles in finished products with reduced flake-shaped particles, significantly improving product quality.
