Iron ore is a highly abrasive, dense, and hard mineral, making its size reduction one of the most demanding processes in the mining and mineral processing industry. To achieve a steady output of 300 tons per hour (TPH), a crushing plant must feature extremely robust machinery capable of enduring immense mechanical stress while minimizing maintenance downtime.
This case study details a high-performance 500 TPH Iron Ore Crushing Plant tailored for metallic mining operations. By pairing a heavy-duty primary jaw crusher with an advanced multi-cylinder hydraulic cone crusher, this production line ensures maximum efficiency, low wear-part consumption, and consistent sizing for downstream processing or direct sale.Technical Specifications & Equipment Configuration
Processed Material: High-hardness & Highly Abrasive Iron Ore (Magnetite, Hematite, etc.)
Production Capacity: 500 TPH (Tons Per Hour)
Maximum Feeding Size: 500 mm
Final Product Sizes: 0-5mm, 5-9mm, 9-12mm
Core Equipment Configuration:
ZSW3895 Vibrating Feeder (Heavy-duty grizzly feeder for uniform flow)

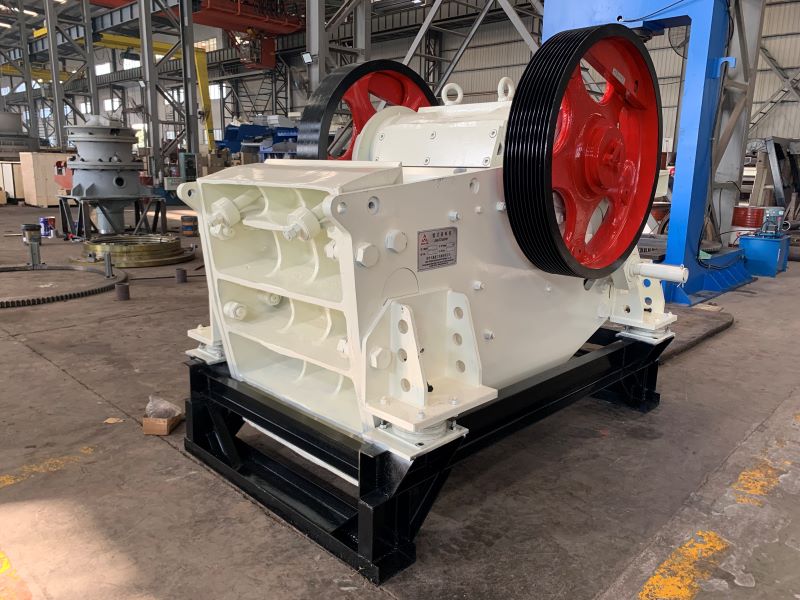

PE600*900 Jaw Crusher (Time-tested, reliable primary crushing)
XHP300 Hydraulic Cone Crusher (High-efficiency secondary fine crushing)

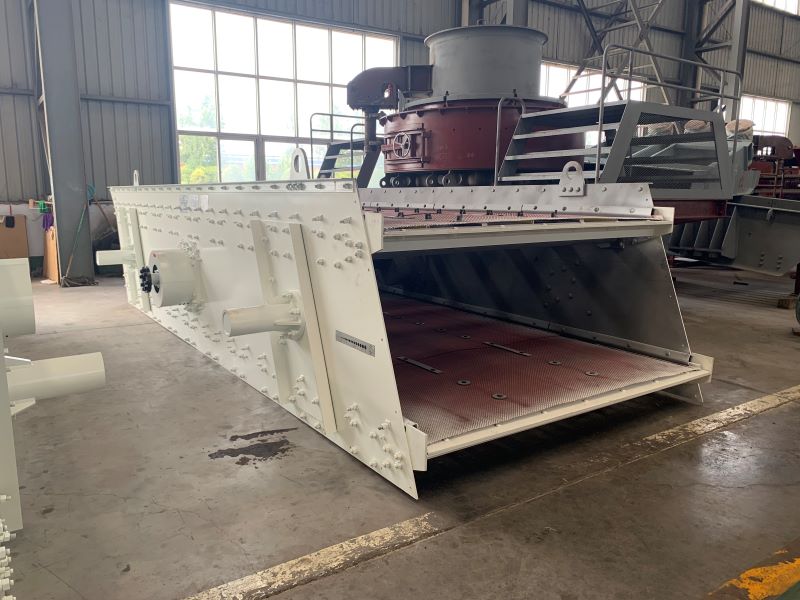

3YK1860 Circular Vibrating Screen (High-capacity multi-deck grading)
Heavy-duty Reinforced Belt Conveyors & Centralized Automation Control Panel
Complete 500 TPH Iron Ore Crushing & Screening Process Flow
Stage 1: Reliable Primary Crushing via PE600*900 Jaw CrusherRaw iron ore run-of-mine (ROM) with sizes up to 500mm is dumped into the ZSW3895 Vibrating Feeder. The feeder isolates the mud and fine particles first, directing only the oversized ore into the PE600*900 Jaw Crusher. Built with a deep crushing cavity and heavy-duty eccentric shaft, the PE600*900 crusher delivers powerful compression to easily break down tough iron ore into manageable intermediate fractions.Stage 2: Secondary Fine Crushing via XHP300 Hydraulic Cone CrusherThe coarsely crushed iron ore is conveyed to the XHP300 Hydraulic Cone Crusher for the critical secondary crushing stage. Because iron ore causes severe wear, standard impact crushers are highly uneconomical. The XHP300 multi-cylinder hydraulic cone crusher uses the inter-particle lamination crushing principle, where the ore crushes against itself rather than just against the steel liners. This significantly lowers the wear rate of mantle and bowl liners while maintaining high throughput.Stage 3: High-Capacity Screening via 3YK1860 Vibrating ScreenThe output from the XHP300 cone crusher is transferred to the 3YK1860 Circular Vibrating Screen. The triple-deck screen utilizes a circular movement track to rapidly grade the materials:
Aggregates matching the 0-5mm, 5-9mm, and 9-12mm specifications are channeled by output belt conveyors into respective finished stockpiles.
Any oversized ore (>12mm) is recycled back into the XHP300 hydraulic cone crusher via a return conveyor, forming a highly efficient, closed-loop processing circuit.
Technical Advantages of This Iron Ore Crushing Line1. Superior Wear Resistance for Lower Operational Costs (OPEX)Iron ore mining can be financially draining due to frequent spare parts replacement. By using high-manganese steel alloys for the PE600*900 jaw plates and leveraging the lamination crushing tech of the XHP300 cone crusher, this plant drastically extends the life cycle of wear parts, boosting overall profitability.2. Advanced Hydraulic Protection and AutomationThe XHP300 cone crusher comes integrated with a smart hydraulic system. If tramp iron or an uncrushable object enters the chamber, the hydraulic cylinders instantly release the object and automatically reset the crushing gap. This prevents catastrophic machine failures and minimizes manual labor.3. High Capacity with Compact LayoutThe combination of the space-saving 3YK1860 vibrating screen and optimized belt conveyor paths ensures that the entire 300 TPH plant fits into a relatively small footprint. This significantly lowers the cost of site leveling, concrete foundations, and structural steel engineering.4. Optimal Particle Size DistributionThe production line is fine-tuned to deliver exact 0-5mm, 5-9mm, and 9-12mm sizes. This accurate screening output ensures the material is perfectly prepped, whether it is headed to a ball mill for further grinding or directly to a steel mill or shipping port.
